Leeb Hardness Meter Durometer for Measuring Small Light Thin Parts and Surface Hardened Layers

Features: 1.Has a starting value software calibration function, ensure the data in any industry codes and standards applicable and accurate. 2.Hermetically sealed metal shell, solid and durable, has excellent resistance to vibration, shock and electromagnetic interference ability. 3.Menu operation, information rich, intuitive, the realization of arbitrary switching material and hardness of system's key type, simple and convenient. 4.Has the function of automatic alarm. Pre-set tolerance limit, beyond the range of automatic alarm, especially suitable for batch testing. 5.Convertible all hardness standards (HL, HB, HRB, HRC, HRA, HV, HS), without calculation. 6.Of automatic sleep, automatic shutdown, the remaining power prompt function, low power design. 7.The 5 ordinary batteries, can work continuously for not less than 200 hours.. Specifications: Measuring Range:HLD(170-960) (170-960)HLD，(19-651)HB，(13-100)HRB，(17-68.5)HRC，(59-85)HRA，(80-976)HV、（30~110）HS Impact Directions:up,down,horizontal,slanting up,slanting down Measuring materials:Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel Hardness scales:HL, HB, HRB, HRC, HRA, HV,HS. Display:128*64 digital matrix LCD Memory:600group(32 every group) Work voltage:3V( 2 AA alkaline batteries) Interface port:RS232 Dimensions:125mm*71mm*27mm Weight:0.3KG

• ★Large screen LCD, showing all functions and parameters. With EL background light.
• ★Large memory could store 600 groups including single measured value, impact direction, material and hardness scale etc.

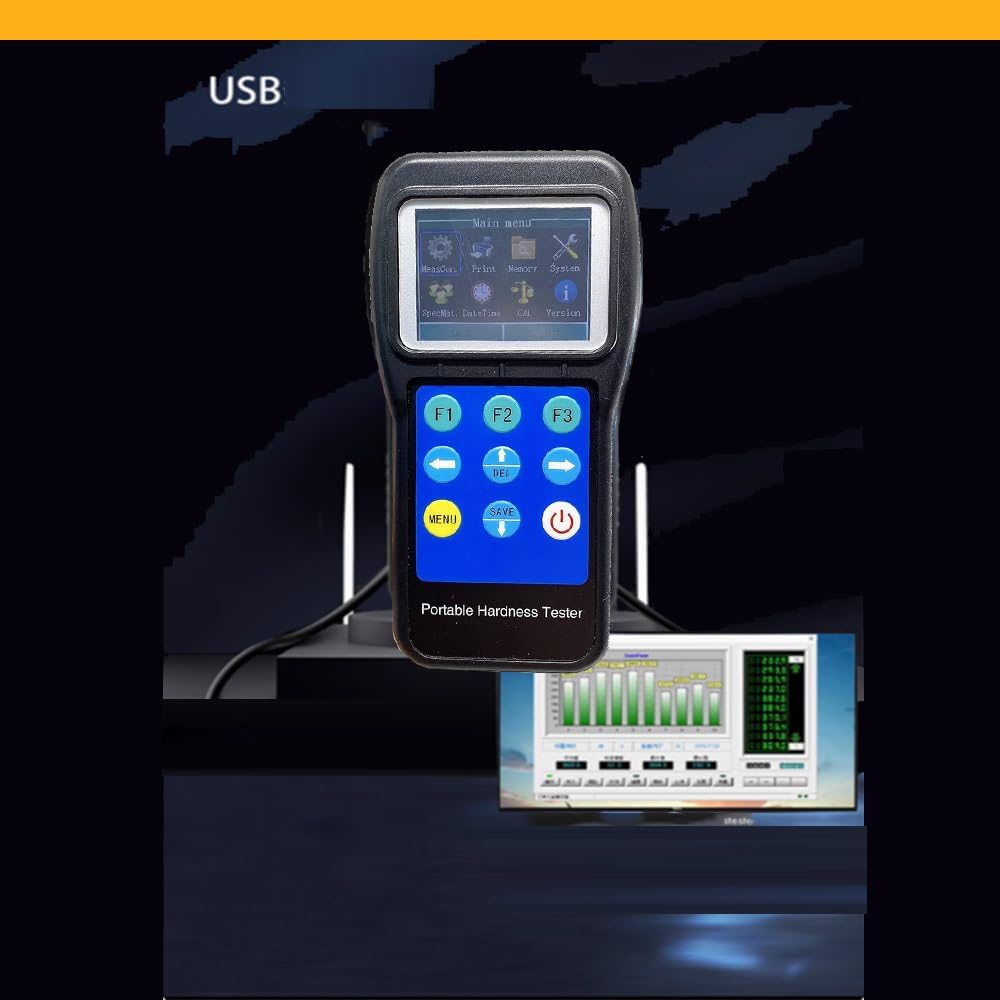

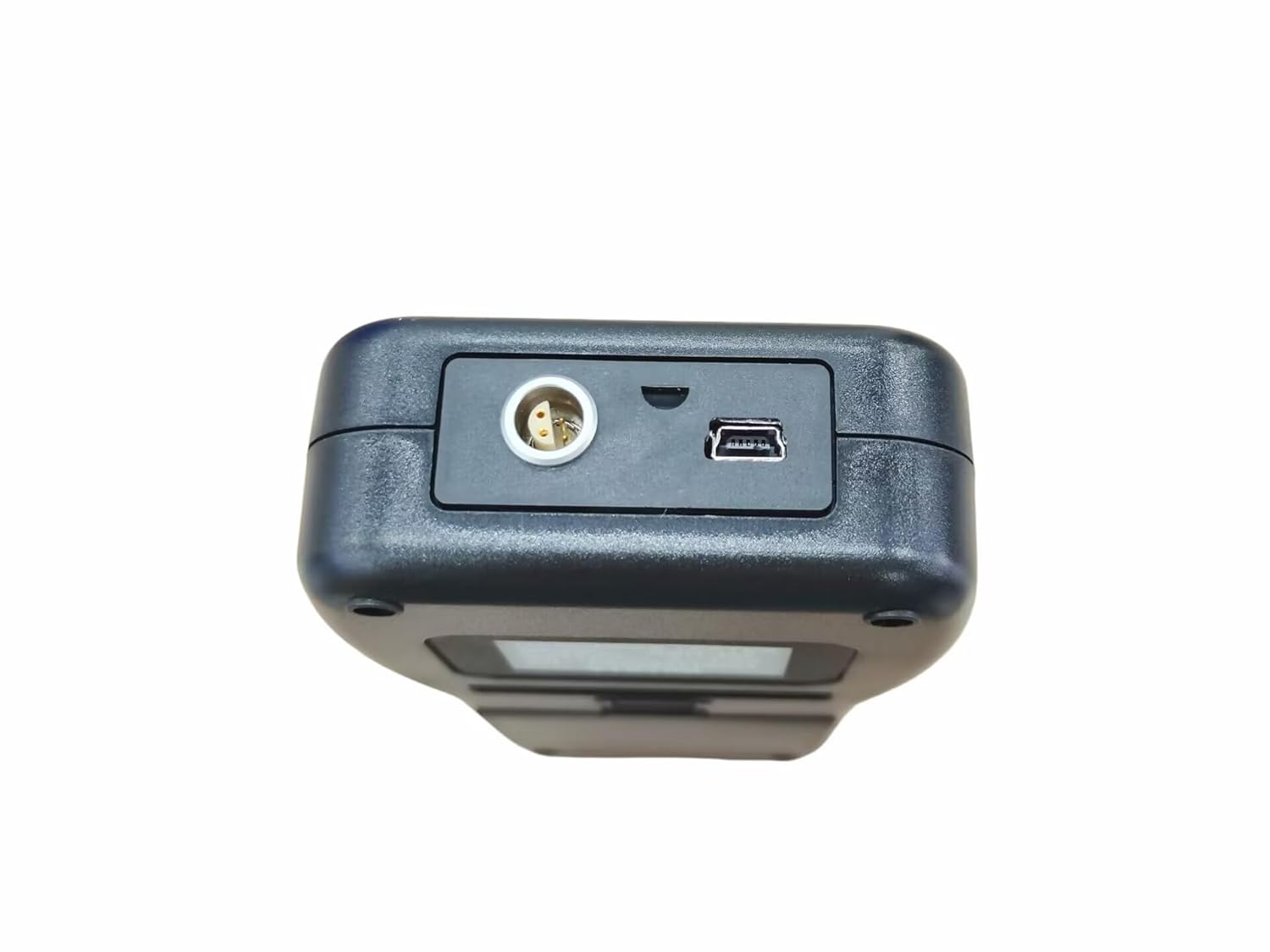

• ★With USB2.0 communication interface, can be convenient, fast exchange data with computer printing and parameter setting.
• ★Has the function of automatic alarm.
• ★Can be equipped with 7 different impact device, automatic identification, replaced without the need to calibrate, good compatibility.
